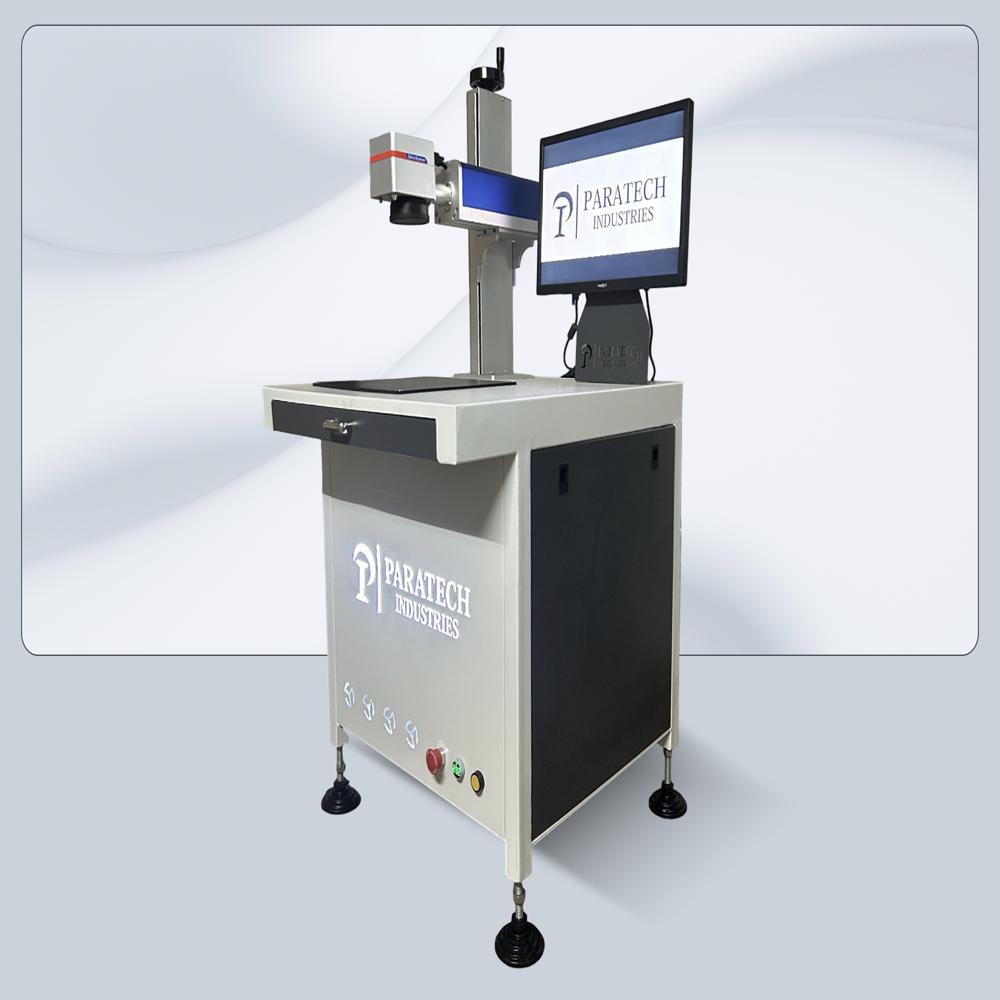

Laser Marking Machine For Big Product

Price 185000 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Laser Marking Machine For Big Product Specification

Marking Speed
7000 mm/s

Marking Area
300 mm 300 mm / 600 mm 600 mm / Customizable

Condition
New

Laser Type
Fiber Laser

Cooling Mode
Air Cooling

Control Software
EZCAD

Accuracy
0.01 mm

Power
50W / 100W / 200W

Dimensions
2200 mm 900 mm 1850 mm

Laser Marking Machine For Big Product Trade Information

Minimum Order Quantity
1 Set

Supply Ability
5 Sets Per Day

Delivery Time
3 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Laser Marking Machine For Big Product

Laser Marking Machines employ laser technology to etch or engrave accurate lines that are permanent onto a range of materials. Due to their adaptability, accuracy, and efficiency, these machines have been widely used in a variety of sectors. High-powered lasers are used by laser marking machines to imprint markings, patterns, or codes on materials. Due to its adaptability to different applications, these machines may be used in a variety of sectors, including automotive, aerospace, electronics, medical, jewelry, and more. High-speed operation of these machines ensures effective output and little downtime

Marking Speed Capacity	8000 mm/s
Usage/Application	MARKING ON VARIOUS MATERIAL
Laser Type	Fiber Laser
Marking Depth	AS PER CUSTOMER REQUIREMRNTS
Model Name/Number	PI-20
One pass (depends on material)	DEPEND ON MATERIALS
Min Line Width	0.01 MM
Minimum Line Width	0.1 MM
Whole Machine Power	1 KW
Maximum working Area	300X300 MM AREA

Power

20/30/50

Versatile Marking Across Multiple Materials

Designed to mark metals, plastics, ceramics, and coated materials, this laser marking machine extends its utility to diverse industries. Whether you manufacture automotive parts, electronic components, or industrial goods, its adaptability ensures clear, high-contrast marks on a wide range of surfaces. Superior beam quality (M2 < 1.5) and configurable power settings provide the flexibility to tailor the process to your exact requirement.

Exceptional Precision and Efficiency

Experience highly accurate results, thanks to a marking precision of 0.01 mm and a minimum character size of just 0.15 mm. Operators can swiftly engrave logos, serial numbers, or intricate graphics on sizable products thanks to the expansive marking area (up to 600 mm 600 mm). Fast marking speeds of up to 7000 mm/s accelerate throughput, making it ideal for high-volume production environments.

User-Friendly Operation and Integration

The machine is equipped with easy-to-use EZCAD control software and interfaces such as USB and RS232, ensuring simple integration into existing manufacturing setups. With Windows 7/8/10 compatibility and both automatic and manual focus options, the unit accommodates different user preferences and workflow needs. Maintenance is minimal due to air cooling and the reliable fiber laser source, making operation trouble-free.

FAQ's of Laser Marking Machine For Big Product:

Q: How does the laser marking machine accommodate large or bulky products?

A: This machine features a spacious working area (300 mm 300 mm or 600 mm 600 mm, with customization available) and a robust frame to support oversized items. Its adjustable focus method and substantial machine dimensions (2200 mm 900 mm 1850 mm) make handling and marking large products straightforward.

Q: What types of materials can be processed with this marking machine?

A: The machine is suitable for marking metals, plastics, ceramics, and coated materials, making it highly versatile for various applications in automotive, electronics, industrial manufacturing, and more.

Q: When should the focus be set to auto versus manual mode?

A: Auto focus is ideal for standard operations and quick setups, ensuring optimal mark quality without manual intervention. Manual focus may be preferred for specialized tasks or when marking uneven or uniquely shaped parts, allowing precise operator control.

Q: Where can this machine be used in terms of operating conditions?

A: It operates efficiently in environments with a temperature range of 10C to 35C and humidity levels between 5% and 80% (non-condensing). Its rigid build and air-cooled design suit both factory floors and workshops.

Q: What is the process for marking a product using this machine?

A: To mark a product, simply load your design into EZCAD software, configure the appropriate settings for your material and product size, place the item within the marking area, and initiate the process. The machine's high-speed laser and configurable focus ensure precise and permanent marks.

Q: What are the benefits of using a fiber laser marking machine for large products?

A: Fiber laser technology provides excellent mark quality, fast processing, and long life (over 100,000 hours). The flexibility to work with various materials and large components increases productivity and reduces operational costs in industrial environments.
